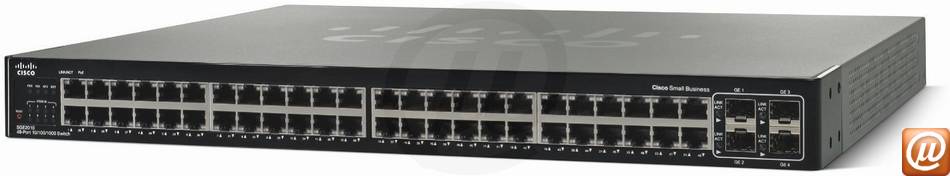

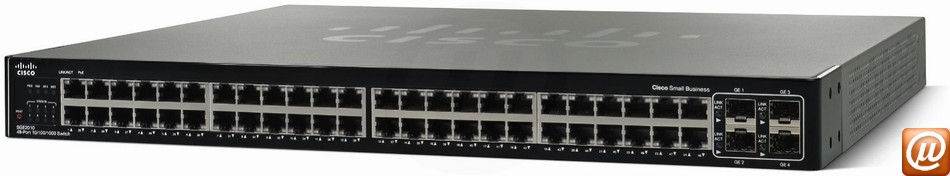

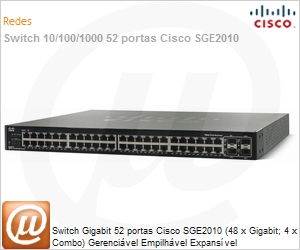

Switch 10/100/1000 52 portas Cisco SGE2010

Disponibilidade de empilhamento inteiramente redundante com opções de alimentação redundantes e imagens duplas para atualizações de firmware.

EM RESUMO:

Tipo: Managed RackMount
Portas: 48 RJ45 10/100/1000Mbps / Gigabit 4 RJ45 10/100/1000Mbps SFP
Backplane: 96 Gbps
Leds: PWR, Fan, Link/Act, Speed, RPS, Master, Stack ID 1 through 8
Características: VLAN, IGMP, DHCP, ARP, UPD
Voltagem: Automática - (110/220)V
Medidas embalagem (L/A/P):: 560 / 155 / 510 mm
Pesos Bruto/Líquido:: 6.86 / 0.00 kg
Garantia: 60 meses

Especificações técnicas completas:

Ports
48 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 4 Gigabit combo ports shared between
mini-GBIC ports; console port; auto medium dependent interface (MDI) and MDI crossover (MDI-X); auto
negotiate/manual setting; RPS port for connecting to redundant power supply unit

Buttons
Reset button

Cabling type
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better
for 1000BASE-T
LEDs
PWR, Fan, Link/Act, Speed, RPS, Master, Stack ID 1 through 8

Switching capacity
96 Gbps nonblocking

Forwarding capacity
71.4 mpps (64-byte packets)

Stack operation
Up to 192 ports in a stack
Hot insertion and removal
Ring and chain stacking options
Master and backup master for resilient stack control
Auto-numbering or manual configuration of units in stack

MAC table size
8000

Number of VLANs
256 active VLANs (4096 range)

VLAN
Port-based and 802.1Q tag-based VLANs; protocol-based VLAN; management VLAN; multicast TV VLAN; Private
VLAN EDGE (PVE); Generic VLAN Registration Protocol (GVRP)

Head-of-line (HOL) blocking
HOL blocking prevention

Layer 3 options
Static routing; classless interdomain routing (CIDR); 60 static routes; IPv4 and IPv6; forwarding in
silicon - wire-speed forwarding of Layer 3 traffic

IPv6 options
IPv6 over Ethernet, dual stack, IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing
Protocol (ISATAP) tunnel, IPv6 neighbor discovery, stateless address configuration, maximum
transmission unit (MTU) discovery, WEB, SSL, Telnet, Ping, Traceroute, Simple Network Time Protocol
(SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS,
access control lists (ACLs), QoS, protocol based VLANs

Web user interface
Built-in web user interface for easy browser-based configuration
(HTTP/HTTPS)

SNMP
SNMP versions 1, 2c, and 3 with support for trap

SNMP MIBs
RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended
bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB,
RFC 2618 RADIUS client MIB, RFC 1215 traps

Remote Monitoring (RMON)
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for
enhanced traffic management, monitoring, and analysis)

Firmware upgrade
Web browser upgrade (HTTP/HTTPS) and TFTP
Dual images for resilient firmware upgrades

Port mirroring
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.

Other management
Traceroute; single IP management; SSL security for web user interface; SSH; RADIUS; port mirroring;
TFTP upgrade; Dynamic Host Configuration Protocol (DHCP) client; BOOTP; SNTP; Xmodem upgrade; cable
diagnostics; Ping; syslog; Telnet client (SSH secure support)

IEEE 802.1X
802.1X-RADIUS authentication, MD5 hash; guest VLAN; single/multiple host mode

ACLs
Drop or rate limit based on source and destination MAC or IP address, protocol, port, VLAN,
differentiated services code point (DSCP)/IP precedence, TCP/ User Datagram Protocol (UDP) source
and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP)
packets, Internet Group Management Protocol (IGMP) packets, DHCP snooping, Address Resolution
Protocol (ARP) inspection, and IP source address guard
Up to 1018 rules

Advanced Security
IP Source Guard
STP Root Guard
Dynamic ARP Inspection
DHCP Snooping

Link aggregation
Using IEEE 802.3ad Link Aggregation Control Protocol (LACP), up to 8 ports in up to 8 groups

Storm control
Broadcast, multicast, and unknown unicast

Spanning Tree
IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, and
Fast Linkover

DoS prevention
DoS attack prevention

IGMP (version 1 and 2) snooping
Limits bandwidth-intensive multicast traffic to only the requestors; supports 256 multicast groups

Power redundancy
Connection to RPS unit for power redundancy

Priority levels
4 hardware queues

Scheduling
Priority queuing and weighted round-robin (WRR)

Class of service
Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification
and re-marking ACLs

Rate limiting
Ingress policer; egress rate control; per VLAN

Statistics
16 meters

Standards
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z
Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.1D Spanning Tree Protocol
(STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1x port access authentication

Dimensions W x H x D
17.32 x 14.70 x 1.73 in.
(440 x 375 x 44 mm)

Unit weight
10.89 lb (4.94 kg)

Power
100-240V 47-63 Hz, internal, universal; also equipped with external redundant power supply connector
for external power supply, -48VDC

Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature
32° to 104°F (0° to 40°C)

Storage temperature
-4° to 158°F (-20° to 70°C)

Operating humidity
10% to 90%, relative, noncondensing

Storage humidity
10% to 95%, relative, noncondensing

Package Contents
Cisco SGE2010P 48-Port Gigabit Switch
AC power adapter with power cord
Two rack-mounting kits with eight screws
CD-ROM with user documentation (PDF) included
Registration card
Console cable
